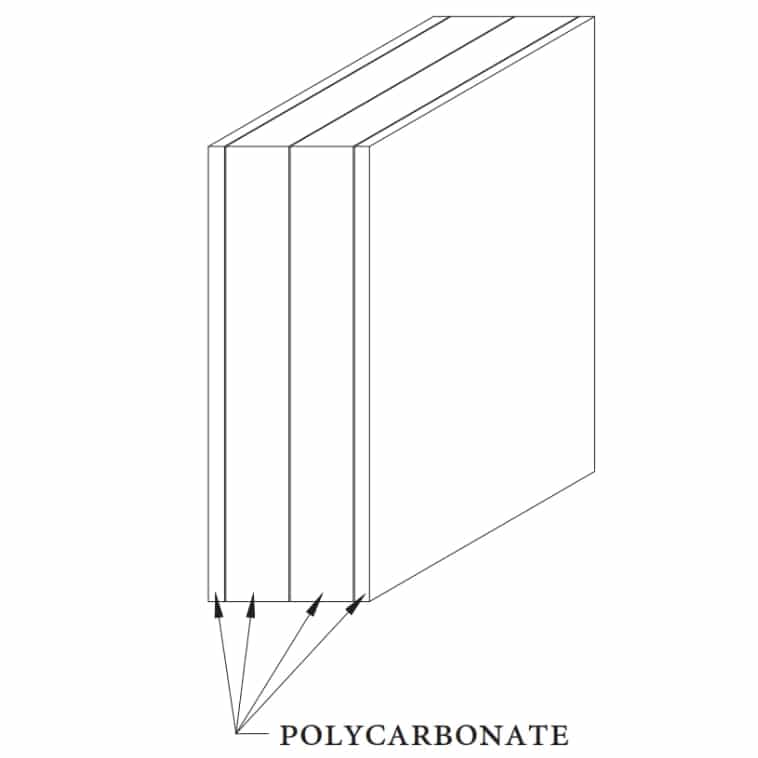

LEXGARD Laminated Polycarbonate

Details

Rating: H.P. White HPW-TP-0500.02 Forced Entry Level 2; WMFL 30 min forced entry; ASTM F1915 Security Grade 3; ASTM F1233 Class 3

SPECIFICATIONS

• MATERIAL

  Lexgard® Laminated Polycarbonate

• nominal THICKNESS

  .369" In

• WEIGHT

  2.29 lbs per SF lbs/sq ft

Details

Rating: H.P. White HPW-TP-0500.02 Forced Entry Level 2; WMFL 60 min forced entry; ASTM F1915 Security Grade 2; ASTM F1233 Class 3

SPECIFICATIONS

• MATERIAL

  Lexgard® Laminated Polycarbonate

• nominal THICKNESS

  .486" In

• WEIGHT

  3.01 lbs per SF lbs/sq ft

Details

Rating: H.P. White HPW-TP-0500.02 Forced Entry Level 3; WMFL 60 min forced entry; ASTM F1915 Security Grade 1; ASTM F1233 Class 4

SPECIFICATIONS

• MATERIAL

  Lexgard® Laminated Polycarbonate

• nominal THICKNESS

  .766" In

• WEIGHT

  4.76 lbs per SF lbs/sq ft

Details

Rating: H.P. White HPW-TP-0500.02 Forced Entry Level 4; UL 752 Level 2; ASTM F1233 Class 5; Blast GSA; UFC

SPECIFICATIONS

• MATERIAL

  Lexgard® Laminated Polycarbonate

• nominal THICKNESS

  1” In

• WEIGHT

  6.41 lbs per SF lbs/sq ft

Details

Rating: H.P. White HPW-TP-0500.02 Forced Entry Level 5; UL 752 Level 3; ASTM F1915 Security Grade 1; ASTM F1233 Class 5; Blast GSA; UFC

SPECIFICATIONS

• MATERIAL

  Lexgard® Laminated Polycarbonate

• nominal THICKNESS

  1.28" In

• WEIGHT

  7.97 lbs per SF lbs/sq ft
