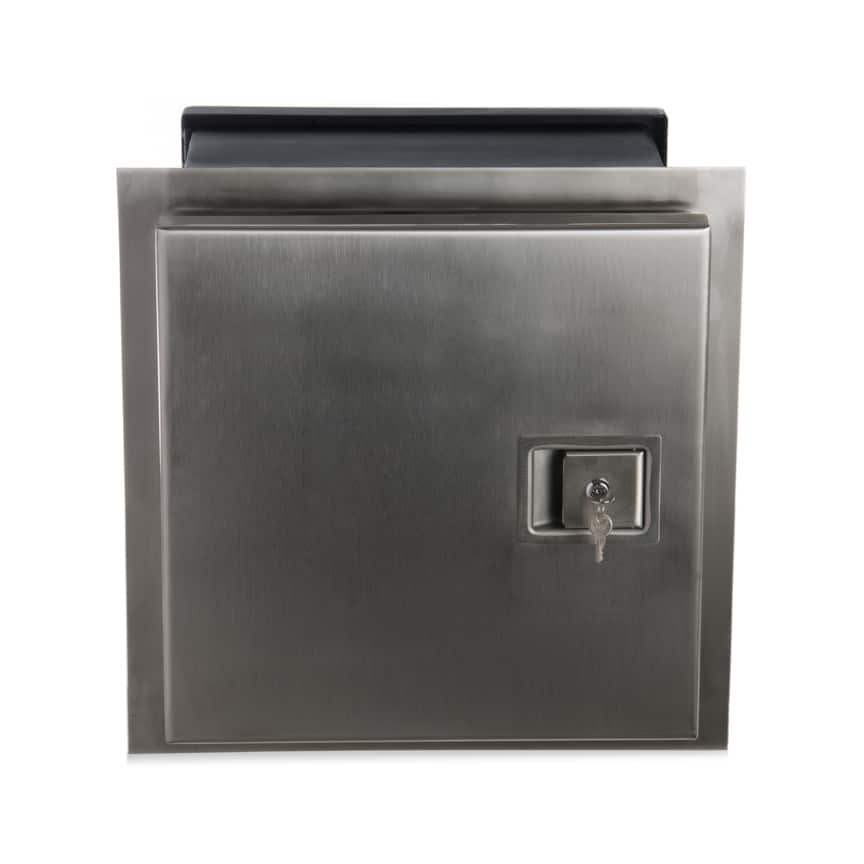

Steel Package Passer

Innovative Counter Line Solutions for Ballistic Protection

Product Description

Insulgard’s Steel Package Passer is designed help defeat ballistic assaults from Level 1, 2 or 3 handguns, based on UL752 Ballistics Standards, when lined with ballistic material. The package exchange system features a mechanical interlocking mechanism which prevents both doors from being opened simultaneously, allowing packages to be passed through a barrier without a breach of security. The wall mounted device is designed to pass small to medium sized packages on a moderate to frequent basis with a long service life and little maintenance.

Standard Sizes

• Outside box dimensions (10ga Unit): 18″ W x 18″ H x 18″ D
• Package dimensions: 15″ W x 10″ H x 15″ D
• Custom manufactured upon request

Features

• Welded and prime painted steel walls and interior door
• Stainless steel exterior door
• Interlocking mechanism allows only one door to be opened at a time
• Adjustable flange allows installation in walls up to 12″ thick
• Wide range of ballistic protection options available
• Optional inside paddle latch for extra security
• Wide range of sizes available
• Delivered assembled and ready for installation

Applications

• Financial institutions
• Convenience stores
• Pharmacies
• Law enforcement facilities
• Other “at risk” facilities

Each end user should determine their ballistic threat and identify the appropriate product(s) to resist that threat.

Construction

• The package exchange system is composed of steel and stainless steel and features all welded construction. The system may be installed in walls up to 12″ thick.
• The doors can be lined with ballistic material. Outer and inner doors have connecting bars that permit only one door to be in the open position at a time.
• An exterior door paddle latch has a keylock with brush or bright chrome finish. The interior door features a wire pull handle.
• Available finishes include prime painted or stainless steel throughout.

For more information, see our SafeChange Bullet Resistant Package Passers and Drawers page or contact our team to learn more.
